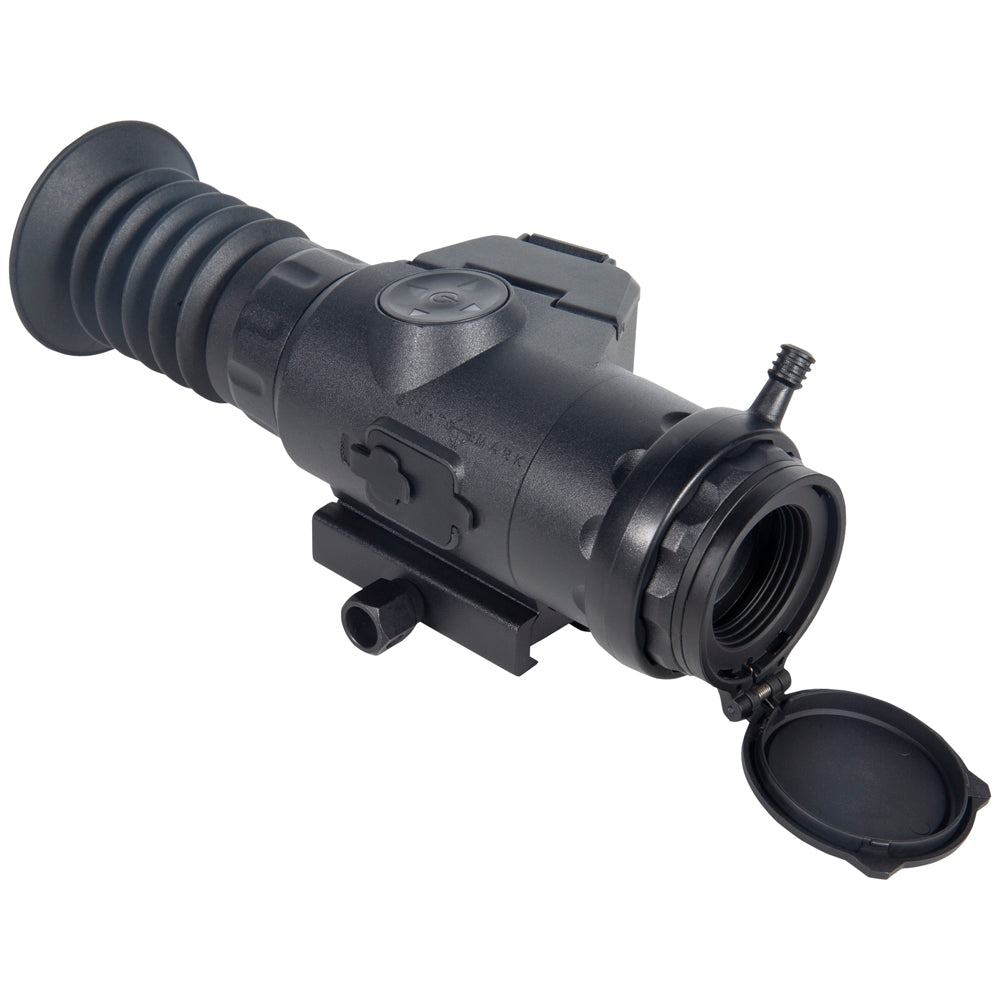

Lunette de visée numérique Sightmark Wraith 4K Mini 2-16x32 à vision jour/nuit

Electronic components

• Type of sensor CMOS sensor
• Sensor resolution, pixels 4K (3840x2160)
• Display type FLCOS
• Display Resolution, pix. 1280x720
• Built-In Video Recorder Availability Yes
• Maximum memory card supported, Gb 256
• Format of video clip AVI
• Resolution of video clip 1080/4K
• Format of photo files JPEG
• Resolution of photo files 4k
• Memory capacity Approximately 1.75 hours video with 64gb SD card on 4k@30 quality level.

Optical characteristics

• Lens diameter, mm 32

Magnification:

• Mini 4K 2-16x32 (SM18041/SM18041EU) 2-16x
• Mini 4K 4-32x32 (SM18042/SM18042EU) 4-32x

Field of View, m @ 100 meters:

• Mini 4K 2-16x32 (SM18041/SM18041EU) 13m
• Mini 4K 4-32x32 (SM18042/SM18042EU) 7m

IR-illuminator

• Emitter LED
• IR Wavelength, nm 850nm
• Equivalent IR Power, mW ~1060 on high, ~540 on medium, ~400 on low
• Battery Life 2 hours on high
• Battery type 2x CR123A

Range of Detection

• Night Vision detection range, yd/m 300/274

Power Supply

• Power Supply, v 6
• Battery type 2x CR123A
• Battery life 3.6Hrs Video Mode/ 4.4Hrs Preview Mode
• External Power Supply 5V via USB-C

Reticle

• Windage & Elevation click value1 pixel/ ~X0.4MOA
• Adjustment range, elevation ~ 150 MOA
• Adjustment range, windage ~ 350 MOA
• Number of reticle options 10 SFP 4FFP
• Colors Black, white, red, blue, green, cyan, orange, yellow, magenta

Physical & operational characteristics

• Body MaterialAluminum
• Accessory rail mount Picatinny
• Operating Temp,°F / C° 32 to 140 / 0 to 60
• Waterproof rating IP55 - water resistant
• Nitrogen Purged, yes/no No
• Shockproof, yes/no yes, 3ft
• Maximum recoil, caliber .308
• Tube diameter N/A
• Length, in/mm 160 mm
• Width, in/mm 77 mm
• Height, in/mm 74 mm
• Weight (with batteries), g 612 g
