See the future in high definition with the new Sightmark Wraith 4-32x50mm Digital Riflescope. Hunt with an advanced 1920x1080 HD sensor, providing full-color clarity in daytime; simply hit the left arrow to switch to night mode – with classic emerald or black and white viewing options. The Wraith comes with a removable 850nm IR illuminator to provide an enhanced nighttime image and accurate target acquisition up to 200 yards. Customize your riflescope with 10 reticle options and 9 color choices to fit your needs. The Wraith features a built-in camera allowing users to record and share videos, 4.5-hours of battery life with 4 common AA batteries and an external MicroUSB port expands options for power. Wraiths also allow video recording and export.
Included in Package

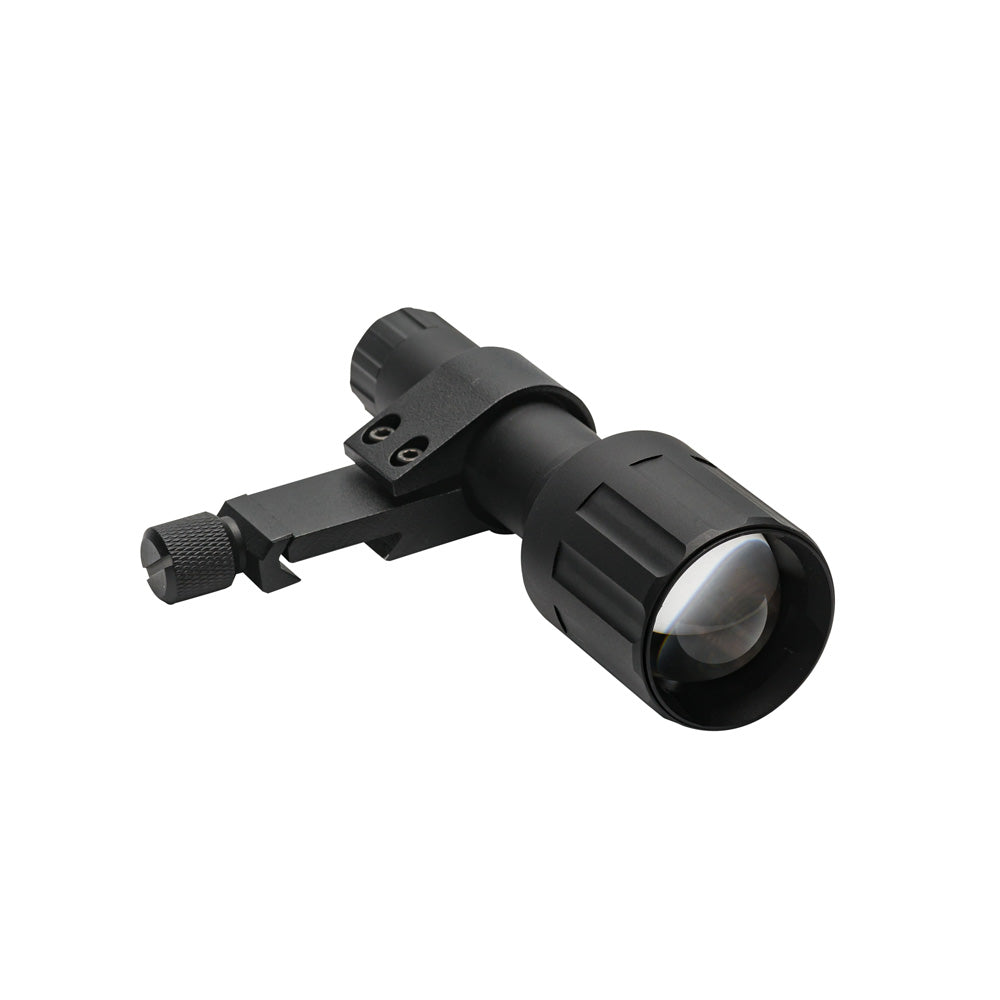

- IR flashlight
- Objective lens cover
- Fixed picatinny mount
- Quick start guide
Batteries Used
- Type: AA
- Quantity: 4
Product Downloads
Features
- 1080P HD digital imaging
- Daytime color mode
- Night vision mode
- Built-in HD video recording
- 8x digital zoom
- 10 reticle options with 9 colors
- Power input
- Additional weaver rail for accessories
- 5 weapon profile saves
EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.
| Type of Sensor | CMOS sensor |
|---|---|
| Sensor resolution, pixels | 1920x1080 |
| Display Type | FLCOS |
| Display Resolution, pix. | 1280x720 |
| Built-in Video Recorder Availability | Yes |
| Maximum memory card supported, Gb | 64 |
| Format of video clip | AVI |
| Resolution of video clip | 1080/720 |
| Format of photo files | JPEG |
| Resolution of photo files | 1080/720 |
| Memory capacity | Approximately 7 hours video with 64Gb SD card |
| Magnification | 4 - 32 x |
| Diameter, Lens, mm | 50 |
| Digital Zoom | 1-8x |
| Lens Focus, mm | 80 |
| Relative aperture, D/f' | 2.5 |
| Field of view, m@100m | 7 |
| Field of view, ft@100yd | 21 |
| Minimum focusing distance, ft/m | 12/3.6 |
| Eye Relief | 2.4 in / 60 mm |
| Diopter Adjustment | -6 to +3 |
| Emitter | LED |
| Equivalent IR Power, mW | ~1060 on high, ~540 on medium, ~400 on low |
| Night Vision Detection Range | 200 yd / 183 m |
| Power Supply | 6 v |
| Battery life, hours | 3.5 video mode / 4.5 preview mode |
| External Power Supply | 5V via microUSB |
| Number of Preloaded Reticles | 10 |
| Colors | Black, white, red, blue, green, cyan, orange, yellow, magenta |
| Body Material | Aluminum |
| Accessory rail mount | Picatinny |
| Operating Temperature | 20 °F to 122 °F / - 6 °C to + 50 °C |
| Waterproof Rating | IP55 water resistant |
| Nitrogen Purged | No |
| Shockproof | Yes, 3ft / 90cm |
| Maximum Recoil | .308 |
| Tube size, in/mm | N/A |
| Length | 10.5 in / 266 mm |
| Width | 1.875 in / 63 mm |
| Height | 3 in / 75 mm |
| Weight | 36.3 oz (with batteries) / 1030 g (with batteries) |
| Elevation Range of Adjustment | 70 MOA |
| Windage Range of Adjustment | 170 MOA |
|
Windage & Elevation click value |
1/5 MOA |
| Battery Type | 4xAA |
| Battery Life (with IR) | 2 hours on high (2x CR123A Battery Type for IR) |
| Field of View | 4 (horizontal) degrees |
| IR Wavelength | 850nm |
-
