           SKU : SM19063

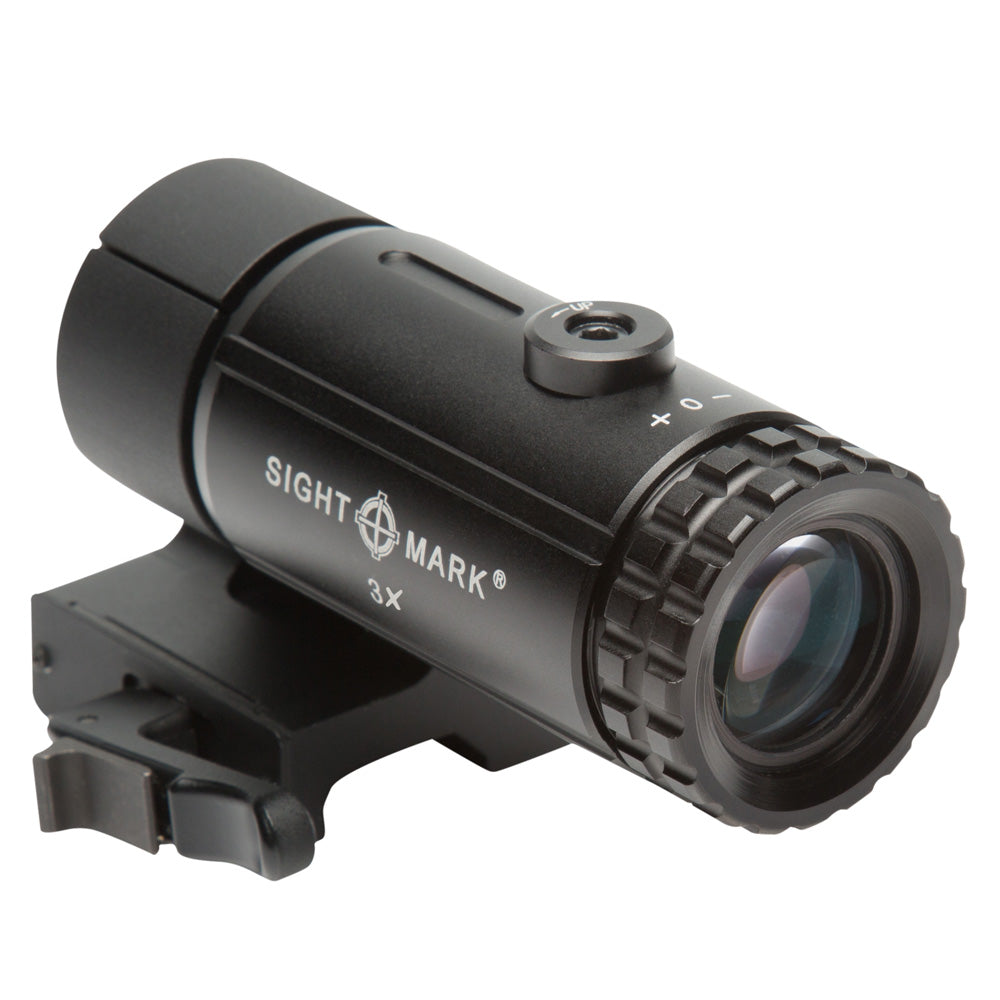

        Designed to mount directly behind a reflex sight or red dot, the versatile T-3 Magnifier allows a quick and easy way to magnify your sight picture by 3x and provides an absolute co-witness. A straight tube magnifier a full .8” shorter than the model it replaces, the T-3 features a streamlined, low drag design, preventing the magnifier from snagging on equipment in important situations. Ideal for engagements up to 100 yards, if a close-range shooting scenario calls for no magnification, simply use the T-3’s flip-to-side mount to rapidly transition between the optic systems. This durable magnifier is constructed of aluminum and provides improved brightness and resolution from fully multi-coated optics. External windage and elevation adjustments align the reticle to the center of the T-3’s point of view. EOTech® and Aimpoint® compatible, the locking quick detach mount found on the T-3 lets the magnifier be quickly removed. Sightmark T-3 Magnifiers include flip-to-side LQD mount, adjustment tools and manual.

        Included in Package

        • Flip to side LQD mount
        • Adjustment tools
        • Manual

        Product Downloads

        Features

        • Locking, quick detach mount for quick and easy removal
        • Flip-to-side mount provides rapid transition between optical systems
        • Fully multi-coated, scratch resistant
        • External windage/elevation adjustment for reticle alignment
        • Increases magnification of accompanying sights for greater engagement range
        • EOTech® and Aimpoint® compatible
        • Aluminum construction


        EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.


        Magnification 3x
        Diameter, Objective Lens 23 mm
        Diameter, Eyepiece 1.26/32 in/mm
        Diameter, Exit Pupil 7.6 mm
        Eye relief (in/mm) 2.25/57 in/mm
        Field of view, m@100m 14.43
        Field of view, ft@100yd 43.3
        Diopter Adjustment +3 to -3
        Diameter, Tube 30 mm
        Maximum Recoil .308 Caliber
        Shockproof Yes
        Fog Proof No
        IP Rating (waterproof) IP55 - water resistant
        Finish/Color Matte black
        Body Material Aluminum
        Lens Coating Full Multi-coated
        Mount Type Picatinny
        Operating temperature, F/C -22 to 160 / -30 to 71 F/C
        Length (in/mm) 4 / 103 in/mm
        Width (in/mm) 2.6 / 66.2 in/mm
        Height (in/mm) 1.67 / 42.5 in/mm
        Weight, oz 10.6 oz.

        -
