           SKU : SM19064

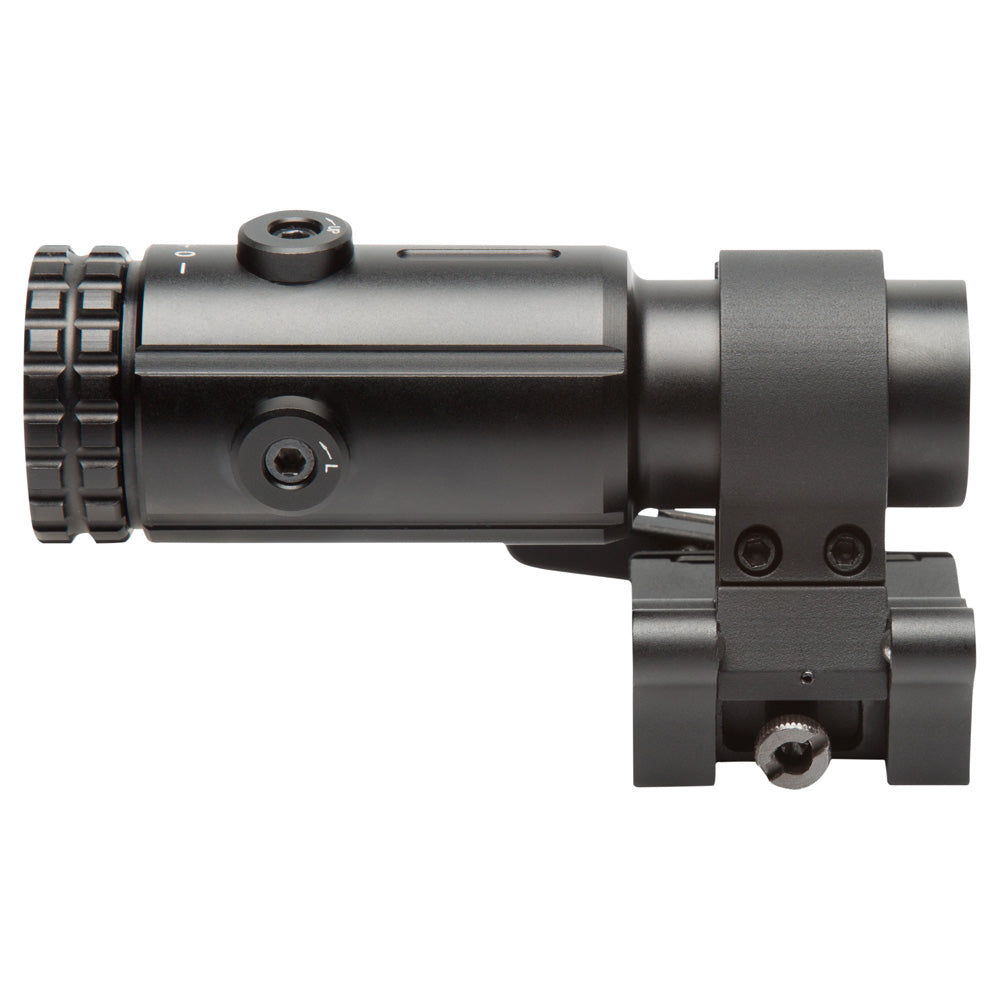

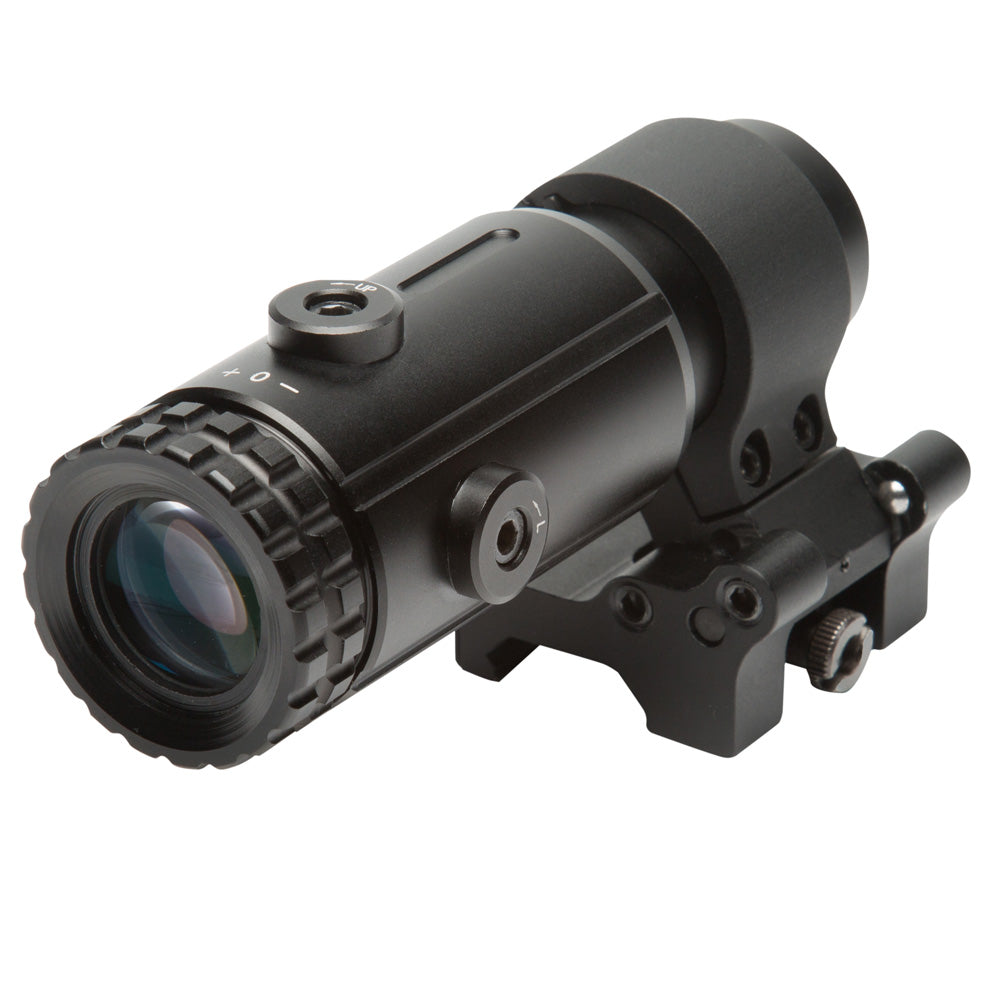

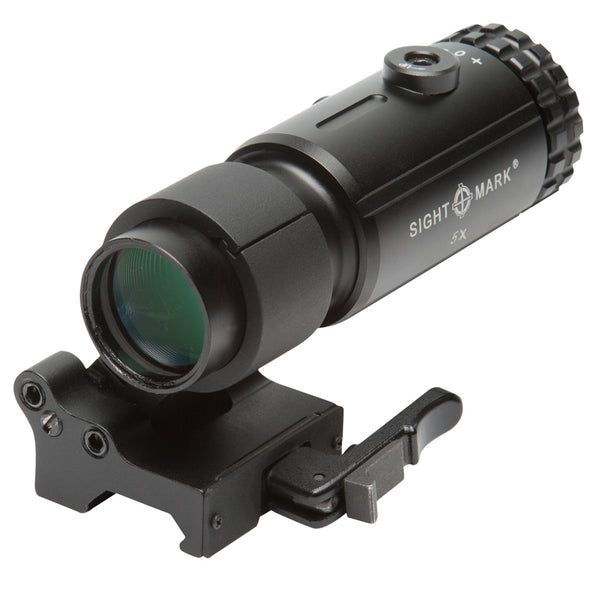

        Built for shooting versatility, the Sightmark T-5 is a magnifier that mounts behind a reflex sight or red dot and provides an absolute co-witness. Instantly change the magnification of your close-range optic from 1x to 5x by using the T-5’s flip-to-side mount. The magnifier’s streamlined, low drag design prevents it from snagging on clothing and equipment and makes the T-5 .7” shorter than the magnifier it’s replacing. Ideal for stretching your AR engagements out to 200 yards, an included LQD mount allows for rapid attaching/detaching in intense shooting situations. The T-5’s aluminum construction is shockproof up to .308 caliber rifles and provides IP55 water resistant protection. Brightness and resolution are improved from fully multi-coated optics and external windage and elevation adjustments help shooters align the reticle of their red dot/reflex sight to the center of the magnifier’s point of view. The Sightmark T-5 includes flip-to-side LQD mount, adjustment tools and manual.

        Included in Package

        • Flip to side LQD mount
        • Adjustment tools
        • Manual

        Product Downloads


        • Locking, quick detach mount for quick and easy removal
        • External windage/elevation adjustment for reticle alignment
        • Absolute co-witness
        • Fully multi-coated, scratch resistant
        • 5x magnification increases engagement to 200 yards
        • EOTech® and Aimpoint® compatible

        EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

        Magnification 5x
        Objective Lens 23 mm
        Diameter, Eyepiece 1.26/32 in/mm
        Diameter, Exit Pupil 4.6 mm
        Eye relief (in/mm) 2.25/57 in/mm
        Field of view, m@100m 9.8
        Field of view, ft@100yd 29.6
        Diopter Adjustment +3 to -3
        Diameter, Tube 30 mm
        Maximum Recoil .308 Caliber
        Shockproof Yes
        Fog Proof No
        IP Rating (waterproof) IP55 - water resistant
        Finish/Color Matte black
        Body Material Aluminum
        Lens Coating Full Multi-coated
        Mount Type Picatinny
        Operating temperature, F/C -22 to 160 / -30 to 71 F/C
        Length (in/mm) 4.72 / 120 in/mm
        Width (in/mm) 2.6 / 66.2 in/mm
        Height (in/mm) 1.67 / 42.5 in/mm
