           SKU : SM13040LR2

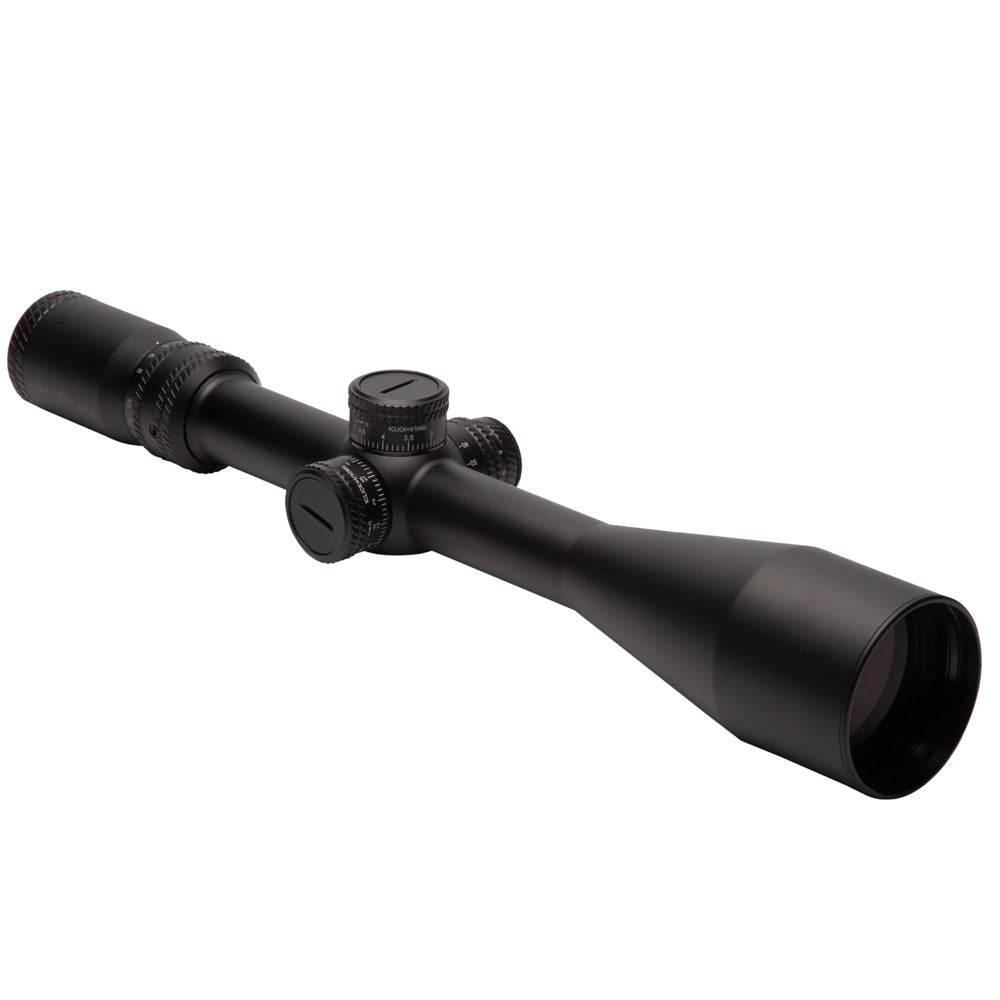

        Keep the odds in your favor by shooting with the first focal plane Citadel 5-30x56 LR2 riflescope. For those who aren’t afraid to reach out and touch something from long-range, the Citadel 5-30x56’s exposed, pop-up locking turrets and red reticle illumination make it a favorite of both competition shooters and serious hunters. A first focal plane reticle ensures shooters can range targets and use their holdovers across the 6x optical system found in this long-distance Citadel. Featuring fully multi-coated optics and a 30mm single-piece tube, the Citadel comes standard with flip-up lens covers, a sunshade and one CR2032 battery. Constructed of aircraft grade aluminum with a hard anodized finish, the durable Citadel 5-30x56 LR2 is IP67 waterproof, fogproof and shockproof.

        Included in Package

        • Flip up lens covers
        • Throw lever attachment
        • Sunshade
        • CR2032 battery

        Batteries Used

        • Type: CR2032
        • Quantity: 1

        Product Downloads


        • 6:1 zoom ratio
        • Exposed low-profile locking turrets
        • First focal plane reticle
        • Red illuminated reticle
        • Single-piece 30mm tube
        • Aircraft grade aluminum
        • Hard anodized finish
        • Shockproof; fogproof; waterproof
        • Fully multi-coated optics

        EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

        California Disclaimer

        Reticle, Type LR2
        Reticle Etched glass
        Reticle, Color Red
        Illuminated (yes/no) Yes
        Reticle Brightness Setting 0 - 11
        Magnification 5 - 30 x
        Objective Lens 56 mm
        Diameter, Eyepiece 40 / 1.6 (mm/in)
        Diameter, Exit Pupil 1.7 - 6.5 mm
        Eye Relief 3.7 - 4.9 / 94 - 124.5 (in/mm)
        Field of view, m@100m 1 - 6.5
        Field of view, ft@100yd 3 - 19.5
        Diopter Adjustment +2 to -2
        Diameter, Tube 30 / 1.18 (mm/in)
        Parallax Setting 20 - infinite
        Focal Plane 1st
        Mil adjustment (one click =) .1
        Windage adjustment range (MIL) 17
        Elevation adjustment range (MIL) 17
        Windage & Elevation, Lock Yes
        Maximum Recoil .338 Win
        Battery Type CR2032
        Battery life, hours 70 - 100 Hours
        Battery Voltage, V 3 V
        Sunshade Yes
        Nitrogen Filled Yes
        Fog Proof Yes
        Shockproof Yes
        IP Standard IP67 - waterproof and dustproof
        Operating temperature, F/C 0 to 120 / -17 to 49 F/C
        Body Material Aluminum
        Finish/Color Matte black
        Lens Coating Full Multi-coated
        Length (in/mm) 14.9 / 380 (in/mm)
        Width (in/mm) 3.1 / 79 (in/mm)
        Height (in/mm) 2.2 / 56 (in/mm)
        Weight, oz 27.5 oz.
