           SKU : SM13142HDR2

        Offering a wide magnification range for mid to long-range shooting, the Presidio 5-30x56 combines elite performance with a sleek, stealthy appearance. Designed for shooters, the Presidio 5-30x features a second focal plane HDR2 reticle, red reticle illumination for contrast against targets and low light shooting, and fully multi-coated optics.

        Its capped, low-profile turrets produce clear, audible clicks and feature aggressive exterior ‘knurling’, to add a distinct tactile feel to give shooters greater confidence when adjusting their windage and elevation. With built-in zero stops, and a single-piece, 30mm tube and aircraft grade aluminum construction, the Presidio is extremely accurate and durable.

        IP67 waterproof and dust-proof, the Presidio is ideal for a variety of firearms, including ARs and bolt actions rifles. The Presidio 5-30x56 includes a flip-up lens caps, a handy throw lever and one CR2032 battery.

        Included in Package

        • Flip-up lens covers
        • Throw lever attachment
        • Batteries Used: CR2032
        • Quantity: 1

        Batteries Used

        • Type: CR2032
        • Quantity: 1

        Product Downloads


        • Scratch resistant lens coating
        • 6:1 zoom ratio
        • 5-30x Magnification
        • Capped, low-profile turrets
        • Fully multi-coated optics
        • Second focal plane reticle
        • Hard, anodized finish
        • Red illuminated reticle
        • Single-piece 30mm tube
        • Shockproof with Aircraft-grade Aluminum
        • IP67-Rated dustproof and waterproof

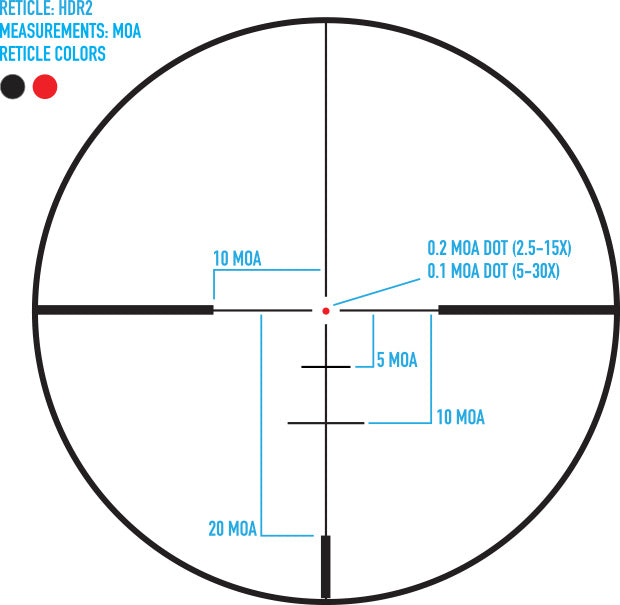

        Reticle type HDR2
        Reticle Etched glass
        Reticle color  Red
        Illuminated (yes/no) Yes
        Reticle brightness settings  0-6
        Magnification (x)  5-30
        Objective lens diameter (mm) 56
        Eyepiece diameter (in/mm) 1.74 / 44.1
        Exit pupil diameter (mm) 11.2 mm - 1.86 mm
        Eye relief (in/mm) 3.7 / 94
        Field of view (m @100m) 6.71m - 1.13m
        Field of view (ft @100yd) 22ft - 3.7ft
        Diopter adjustment (+/-) +2/-2
        Tube diameter (mm/in) 30 / 1.18
        Parallax setting (yds/m) 20 - ∞ / 18m -
        MOA adjustment (one click =)  1/4
        Windage adjustment range (MOA)  60
        Elevation adjustment range (MOA)  60
        Windage & Elevation lock (yes/no)  No
        Maximum caliber .338
        Battery type  CR2032
        Battery life (hours)  150 - 500 hrs
        Battery voltage (V)  3
        Sunshade (yes/no) No
        Nitrogen filled (yes/no) Yes
        Shockproof (yes/no) Yes
        Fog proof (yes/no) Yes
        Focal plane  2nd
        IP Standard (water rating) IP67 - waterproof and dustproof
        Body material  Aluminum
        Finish/color Matte black
        Lens coatings Fully multi-coated
        Operating temperature (°F/°C) -4°-149° F / -20° - 65° C
        Length (in/mm) 15.67 / 398.02
        Width (in/mm) 3.79 / 96.25
        Height (in/mm) 3.02 / 76.71
        Weight (oz/g) 33 oz / 935,5 g
