           SKU : SM26036

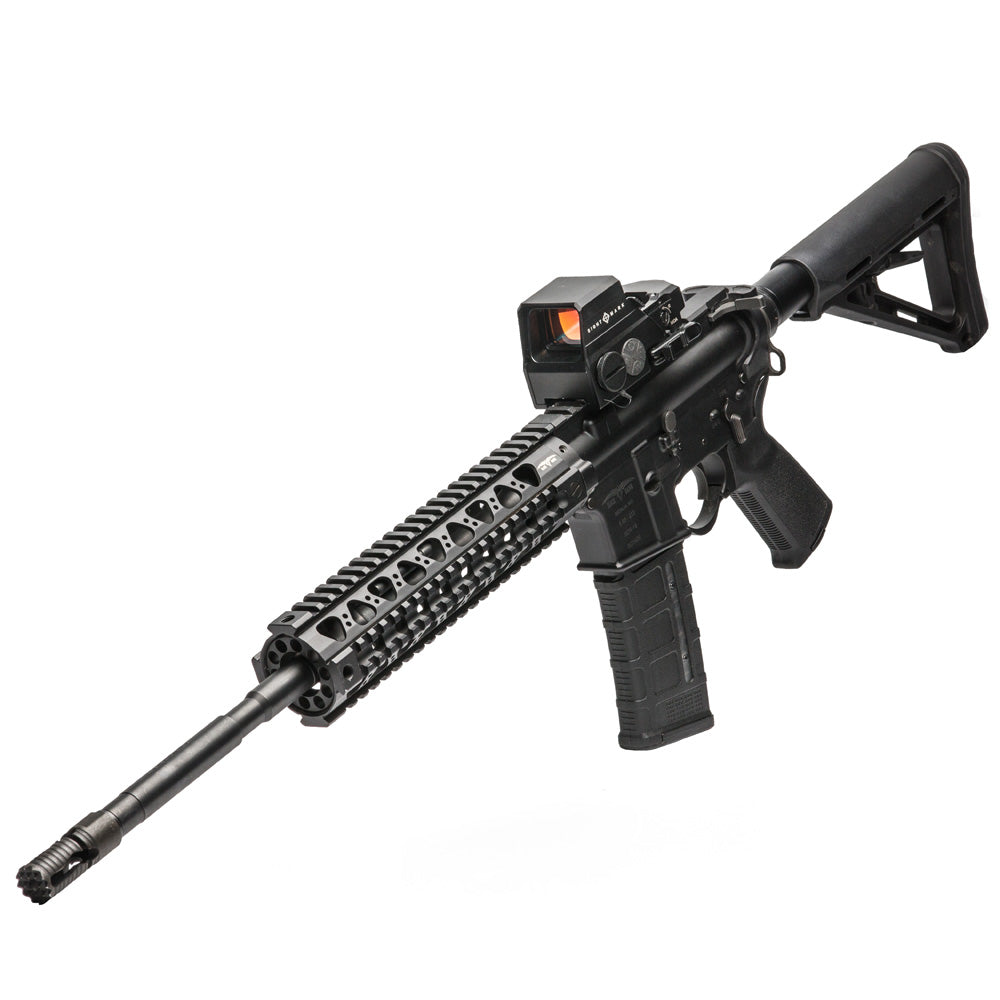

        Designed for lightning fast target acquisition, the Sightmark Ultra Shot M-Spec MDS offers the accuracy and speed expected in a high end reflex sight while boasting the mil-spec reliability that Sightmark Products are known for. The Ultra Shot M-Spec MDS offers a diversity of reticle options with its multi-dot sight and ease of attachment with its locking quick-detach system which makes attaching and detaching from picatinny rails smooth and effortless. The Ultra Shot M-Spec’s premium wide-angle lens system with scratch-resistant and anti-reflective red coating, patented integrated sunshade, illuminated red 65-MOA circle-dot reticle with 10 brightness settings, night vision brightness modes, parallax correction (beyond 10 yards) and unlimited eye relief deliver a crisp field of view even in low light and when perfect sight alignment isn’t an option. Built tough, the Ultra Shot M-Spec Reflex Sight is shockproof, dustproof, IP68 waterproof, recoil-rated up to .50 BMG and constructed of a rugged, lightweight magnesium alloy body and aluminum Protective shield. 1 MOA windage and elevation adjustments with up to 120 MOA of travel get you on target quickly while the Interlock internal locking adjustment system and a single CR123A battery with an improved 65,000-hour life keeps you there. The Ultra Shot M-Spec Pro Reflex Sight also features locking fixed Picatinny mount, low-battery indicator, motion sensing auto on/off activation, digital switch controls, 12-hour auto shut-off and Sightmark’s lifetime warranty. The Ultra Shot M-Spec Pro Reflex Sight is also perfectly compatible with the Sightmark XT-3 Tactical Magnifier (SM19062). Includes adjustment tools, CR123A battery, operation manual and neoprene cover.

        US Pat. 10139197B1

        Included in Package

        • Manual
        • Battery
        • Adjustment tools
        • Neoprene cover

        Batteries Used

        • Type: CR123A
        • Quantity: 1

        Product Downloads


        • Multi-Dot Sight (MDS) reticle system
        • Improved battery life
        • Rugged, lightweight magnesium alloy housing
        • Protective aluminum shield
        • Patented integrated sunshade
        • Motion sensing auto on/off activation
        • Low battery indication
        • 12 hour auto shut off
        • Advanced, parallax free lens design
        • Wide lens Provides quick target acquisition
        • Slotted windage and elevation adjustments
        • Red reticle illumination
        • Digital switch controls
        • 10 reticle brightness levels
        • Night vision brightness modes
        • 100% waterproof and dustproof
        • Scratch resistant lens coating
        • Interlok™ internal locking adjustment system

        Reticle, Type 65 MOA Circle Dot Crosshair with 2 MOA dot, or 2 MOA dot
        Reticle, Color Red
        Reticle Brightness Setting Off, 1-10, NV 1-6
        Magnification 1 x
        Objective Lens 33x24 mm
        Eye Relief Unlimited
        Elevation Range of Adjustment 120 MOA
        Windage Range of Adjustment 120 MOA
        Adjustment Value 1 MOA
        Parallax Setting 10 / 9.1 (yd / m)
        Finish/Color Matte Black
        Body Material Magnesium alloy
        Maximum Recoil .50 BMG
        IP Rating (waterproof) IP68 - waterproof to 40ft/12m
        Nitrogen Filled No
        Shockproof Yes, 8ft / 2.4m
        Fog Proof No
        Lens Coating AR Red
        Mount Type Locking QD, Picatinny
        Battery Type CR123A
        Battery life, hours 300 - 65,000 (daytime settings)
        Battery Voltage, V 3V
        Operating Temperature -22 to 160 / -30 to 71 (F / C)
        Length 4.01 / 102 (in / mm)
        Width 1.85 / 47 (in / mm)
        Height 2.32 / 59 (in / mm)
        Weight 9.6 / 272 (oz / g)
