           SKU : SM34021

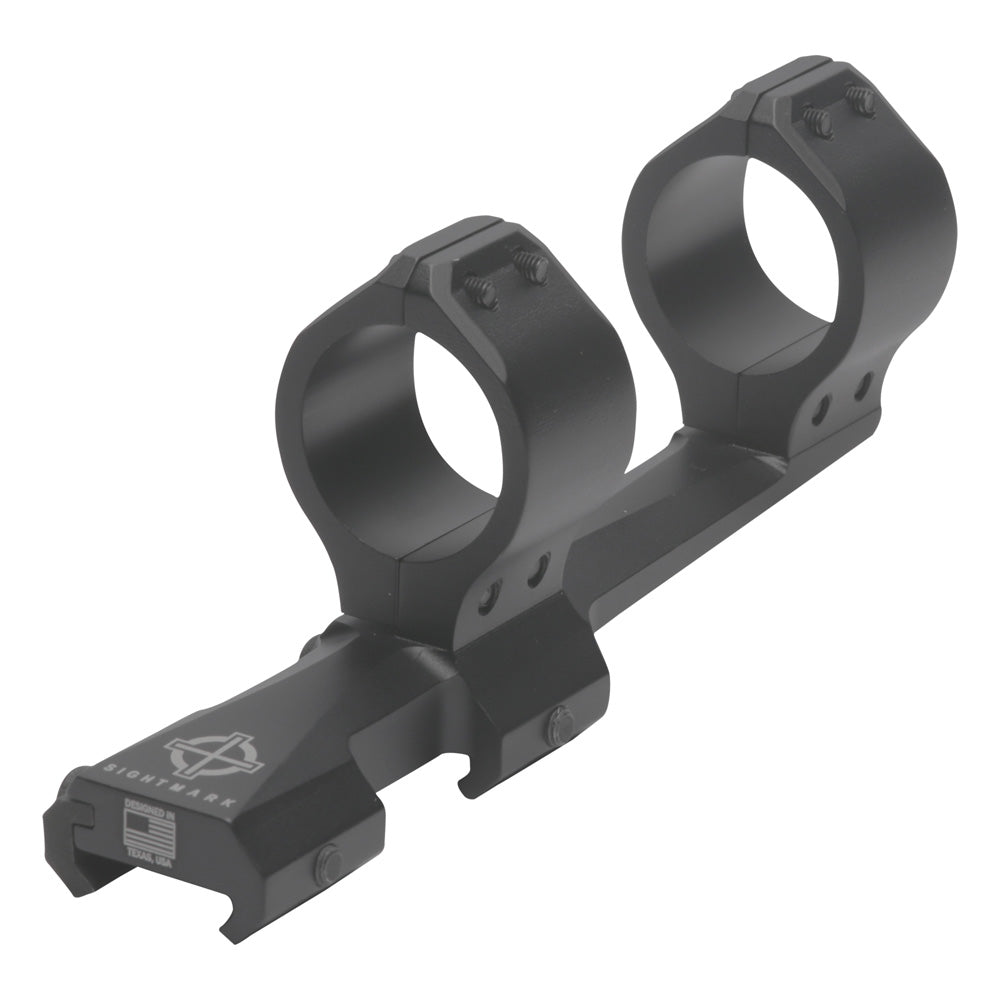

        The Sightmark Cantilever 30mm Fixed Mount fits 30mm riflescope tubes with a two-inch forward offset giving you more eye relief and a more comfortable cheek rest position. The cantilever mount features a 20 MOA built in slope allowing more elevation adjustments for long-range shooting. The 30mm fixed mount is constructed out of durable aircraft-grade 6061-T6 aluminum and finished with a matte black, non-reflective coating. Cantilever mounts allows easy transfer of your riflescope to other firearms, as well as installation and removing on a single firearm without losing zero.

        Included in Package

        • 30mm Fixed Cantilever
          Mount with 20MOA
        • Hex Key

        Product Downloads


        • 6061-T6 aluminum body
        • Fits Picatinny rails
        • Matte black, non-reflective finish
        • fixed mount w/20MOA
        • 30mm ring
        • Ability to hold zero when transferring from one firearm to another.


        Mount Type Picatinny
        Diameter, Ring 30mm
        Material Aluminum 6061-T6
        Centerline Height 1.5 / 38.1 in / mm
        Torque Spec for Mount Hex Nut, in-lbs 40-50
        Torque spec for torx scope rings (in-lbs) 22-25
        Length 5.98 / 152 in / mm
        Width 1.29 / 33 in / mm
        Height 2.48 / 63 in / mm
        Weight, oz 5.8 oz
