           SKU : SM18050

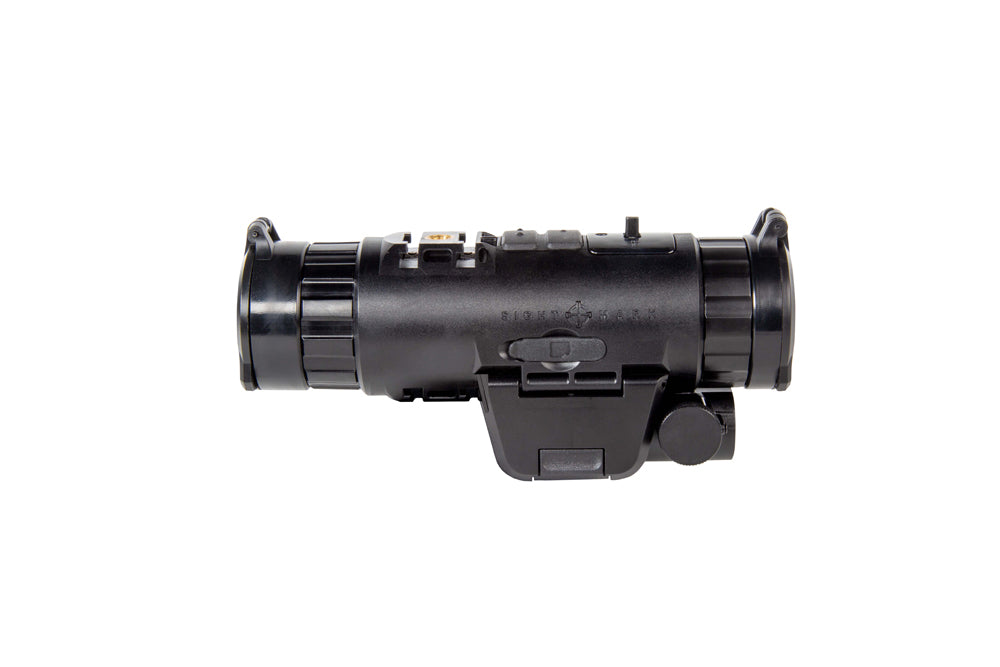

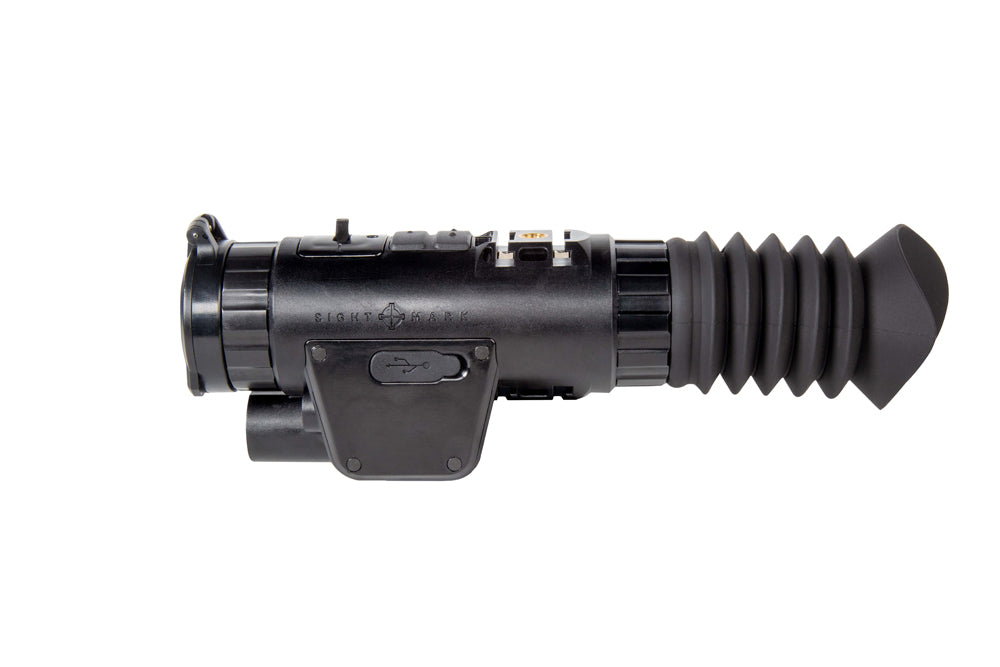

        Sightmark’s Wraith 4K Monocular is an optic with multi-mounting versatility. Evolved from the Wraith 4K Mini, this helmet-, handheld- or rifle-mounted optic provides users with a digital night vision optic that is technologically advanced and potentially hands-free. With 1-8x digital zoom, video-recording capabilities and a sleek polymer housing, this optic represents the future of digital night vision. Its auto-adjusting, integrated IR light is ideal for various environmental conditions, and its easy mounting & dismounting make the Wraith 4K Monocular a must-have for Sightmark customers!

        Included in Package

        • CR123a battery
        • Flip Caps
        • Eye Cups
        • Bridge Mount
        • User Manual
        • USB cable

        Batteries Used

        • Type: CR123a
        • Quantity: 2

        Product Downloads


        • Built-in USB
        • 4k/1080p imaging
        • 1-8x digital zoom
        • Built-in photo and video recording
        • 4k (3840x2160) sensor
        • Polymer housing
        • 2 CR123A batteries
        • Integrated LED IR at 850nm
        • Auto-adjust IR

        EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

        California Disclaimer

        Type of sensor CMOS sensor
        Sensor resolution, pixels  4K (3840x2160)
        Display type FLCOS
        Display Resolution, pix. 1280x720
        Built-In Video Recorder Availability Yes
        Maximum memory card supported, Gb 256
        Format of video clip AVI
        Resolution of video clip 720/1080/4K
        Format of photo files JPEG
        Resolution of photo files 4k
        Memory capacity Approximately 1.75 hours video with 64gb SD card  on 4k@30  quality level.
        Magnification  1-8
        Lens focus, mm 25
        Lens diameter, mm  17
        Digital zoom  1-8x
        Field of View,°, horizontal 17
        Field of View, m@100m 17
        Field of View, ft@100yd 51
        Minimum focusing distance, ft/m 5 / 1.524
        Eye Relief, in/mm  3 / 76
        Diopter adjustment, dptr. -6 to +3
        Emitter LED
        IR Wavelenght, nm 850nm
        Equivalent IR Power, mW 2000
        Battery life with IR on 2 Hours
        Night Vision detection range, yd/m 300/274
        Power Supply, v 6
        Battery type 2x CR123A
        Battery life 3.6Hrs Video Mode w/ IR off/ 4.4Hrs Preview Mode  w/ IR off
        External Power Supply 5V via USB type C
        Body Material Aluminum
        Accessory rail mount  Picatinny
        Operating Temp,°F / C° 32 to 140 / 0 to 60
        Waterproof rating IPX6 - water resistant
        Nitrogen Purged, yes/no no
        Shockproof, yes/no yes, 3ft
        Maximum recoil, caliber .308
        Tube diameter n/a
        Length, in/mm 6.299 / 160
        Width, in/mm 3.031 / 77
        Height, in/mm 2.913 / 74
        Weight (with batteries), g 340
